Description

Affordable carburetor that works

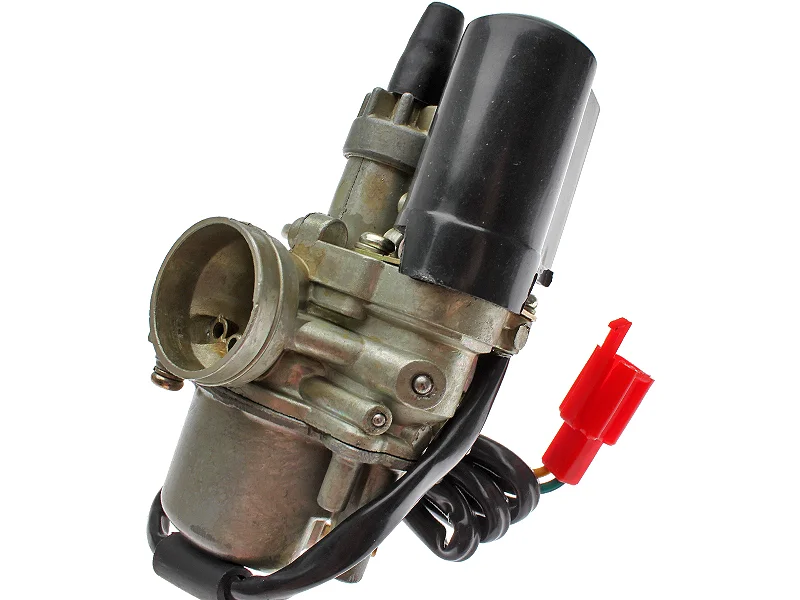

This carburettor from Zoot delivers a fine and smooth supply of petrol mixture that ensures optimal throttle response. Rubber gaskets are fitted in all relevant places and with easy access to the petrol nozzles. Be aware that this carburettor has a spigot for oil, but that this sits high, where in the future it is better to blind this off and in the future the oil itself will be mixed into the petrol when refuelling. Uses Gürtner main jets just like the original carburettor.

Specifications:

• 12mm carburetor
• 28mm tension at air filter
• 35mm between mounting holes
• Incl. Automatic choke
• Gürtner head nozzle size #75 (0.75 mm)
• With fixed nozzle pipe for idle, therefore the idle nozzle cannot be changed.

Connections:

• Copper colored: Gasoline
• Silver colored: Oil
• Sump: Overflow
